R21 Wheel Base

$999.00

R21 Wheel Base

$999.00

[jgm-preview-badge]

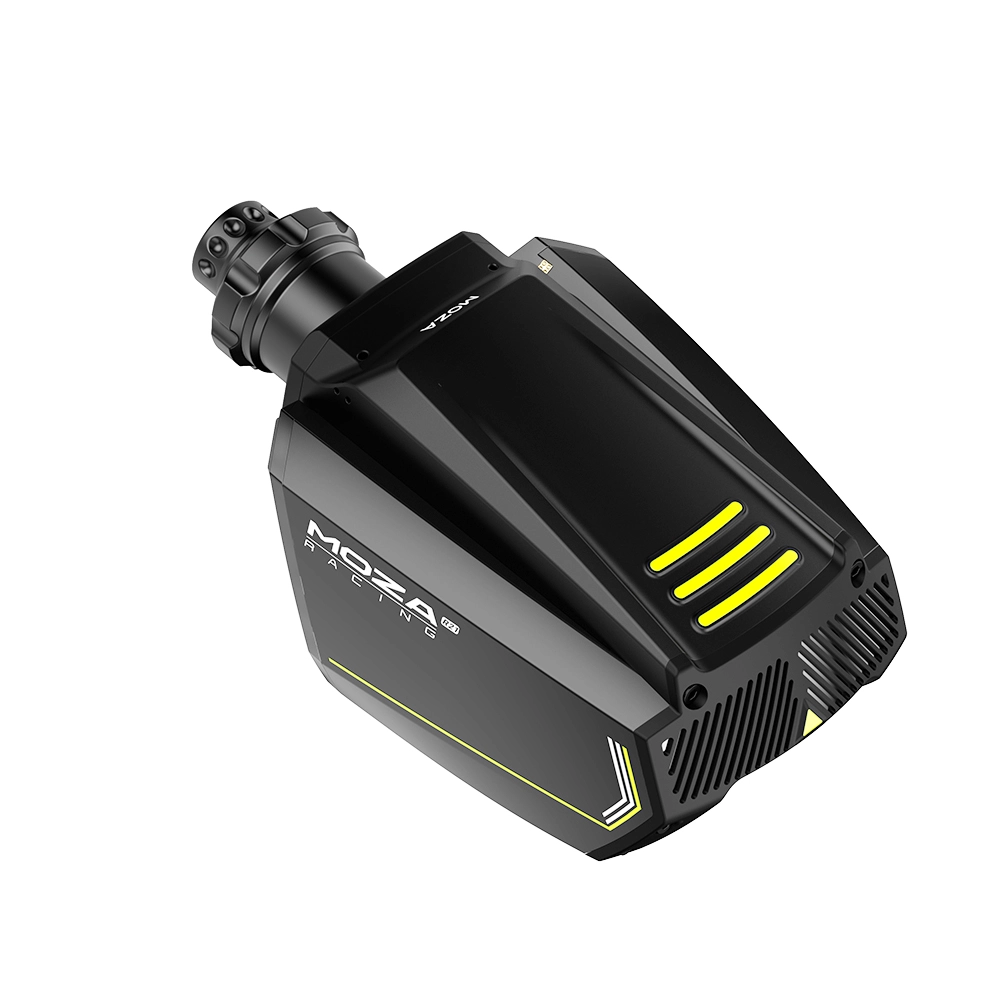

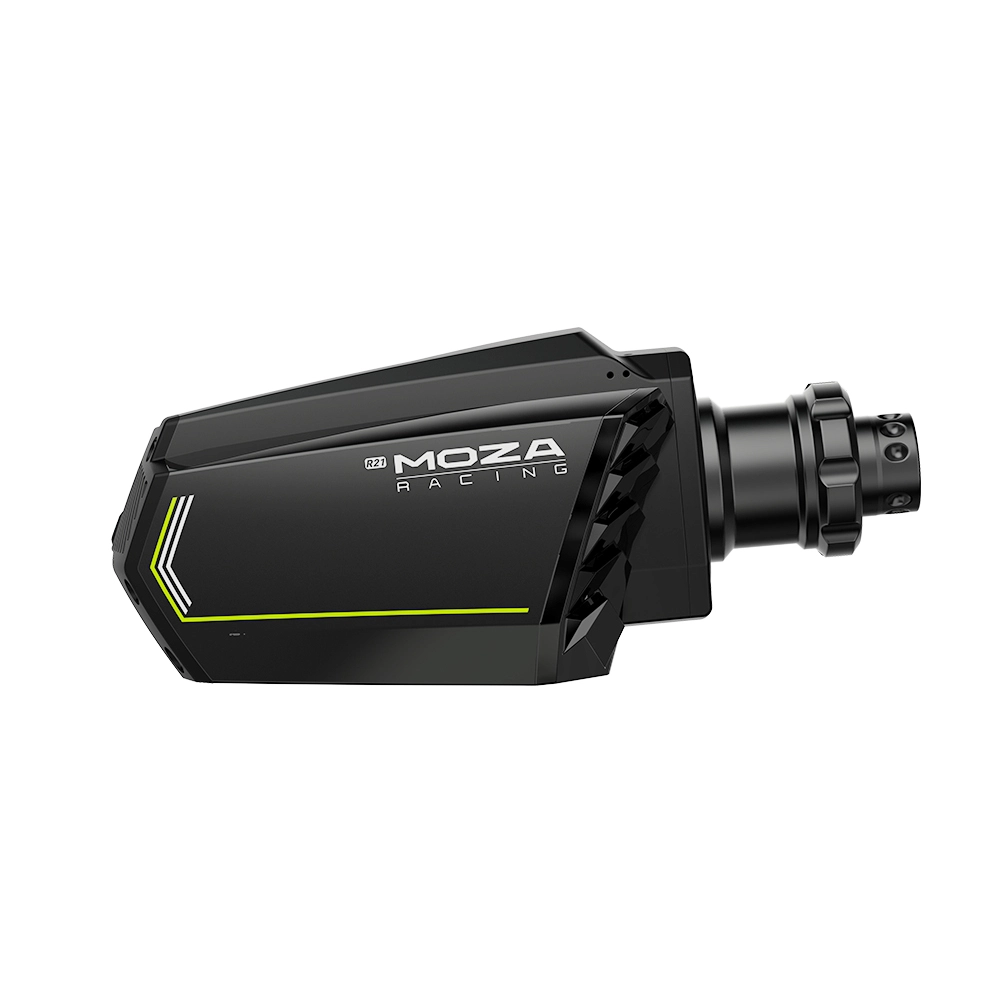

Discover the pinnacle of our sim racing wheelbases collection, the MOZA R21. With a remarkable peak torque of 21 Nm,  it sports a 30% larger torque output than other similar models, it delivers unparalleled force feedback for a truly immersive racing experience. Its all-aluminum alloy body combines strength and elegance with its unique supercar-inspired design. The R21 motor utilizes 6 unique design approaches to ensure a smooth racing experience. The rotor of the R21 is a triple staggered slanted pole design commonly found in electric motor vehicles and ensures a balanced vibration-free motor. Featuring 262,144 points of resolution, every movement is captured with exceptional precision. With hands-off protection and ultra-low static torque, you can focus on the race without distractions. Take control with the MOZA Pit House App Control, allowing you to fine-tune settings with ease. Its one-click launching system puts you on the fast lane to victory.

Overview>

*Ship within 7 business days, with estimated delivery in 7-12 business days after the order is shipped.

14-Days Protection

Money back guarantee

Secure Payment

Paypal/Credit card

Global Support

Support guarantee

Platform PC
FFB Drive System Direct Drive
Max Wheel Rotation Limitless
Housing Material Aviation Grade Aluminum Alloy
Housing Color Black
Peak Torque 21 Nm
Peak Power 480W
Input voltage 110V~220V AC —>36V DC
Encoder Resolution 262144 ppr (18-bits)
USB Refresh Rate 1000Hz
Indicator YES
Quick Release Supported
Connection Ports Power, DC Input, E-stop, USB (Pogo pins for RM dash )
Accessories User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method Bottom mount
Side Mount Option With an optional side/front mount bracket
Table Clamp Optional
Side Mounting YES
Emergency Stop Optional
Dimension (L x W x H)(mm) 327*170*130
Weight 8.9kg
App Functions Supported
Indicator YES
